Are you looking to only record peripheral physiology sensors now, but keep your options open for recording EEG in the long run? Then the actiCHamp Plus AUX might be just the tool for you!

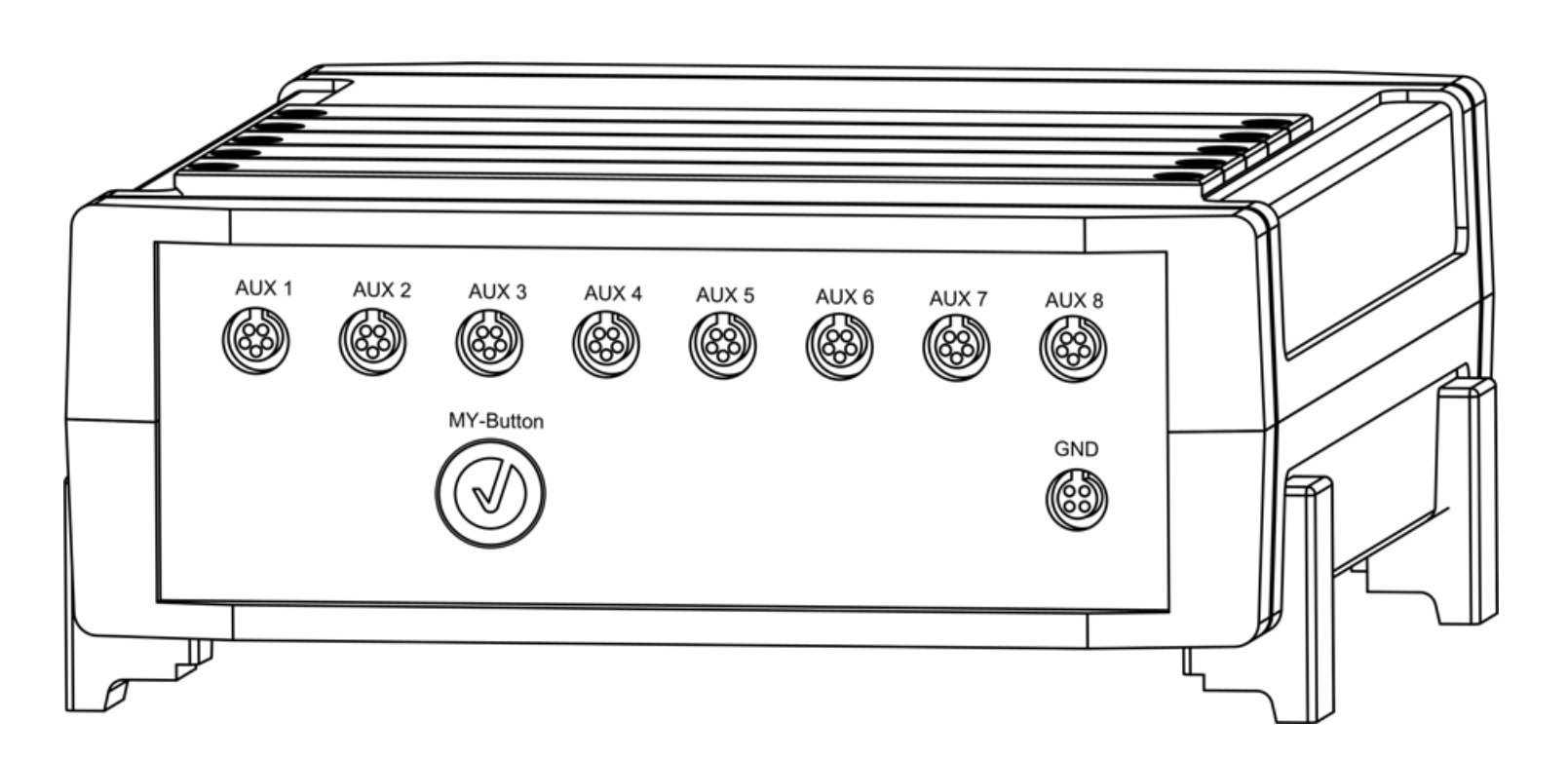

Use the newly released BrainVision Recorder 2 to easily setup the actiCHamp Plus AUX to measure up to eight (8) peripheral physiology values.
Which possible peripheral physiology measures can I record?
- Bipolar leads for electrocardiography (EKG/ECG), electromyography (EMG), electroculargraphy (EOG), electroretinography (ERG)
- Respiration
- Galvanic Skin Response (GSR) / Electrodermal Activity (EDA)
- Accelerometry (1D and 3D)
- Raw audio (via StimTrak), you can record at up to 100kHz for hi-fidelity sound!
- Force (in Newtons)
- Light (photosensor, mV)
- …or, your own sensor! Ask us about the loose lead binder plug to connect to your own sensor.
Scalable solution for EEG/ABR in the future

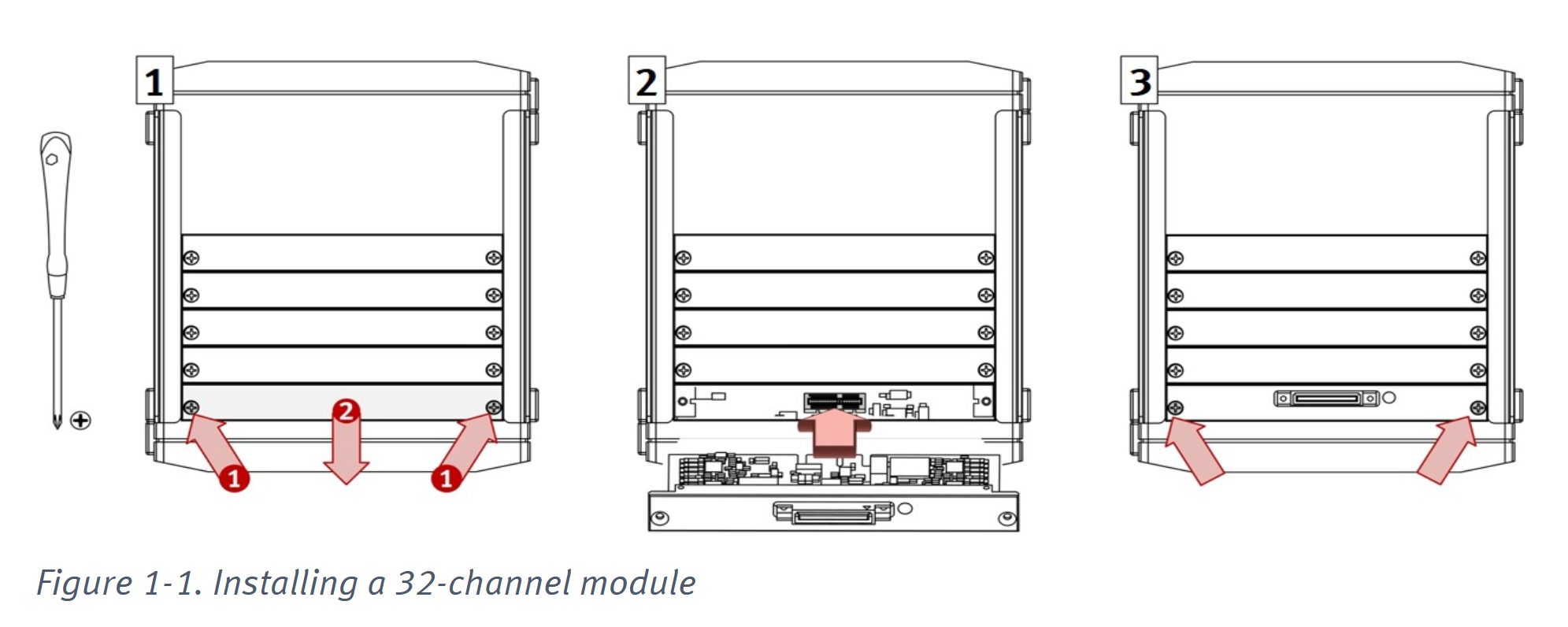

- You can add build from your 8x AUX channels in steps of 32 EEG channels at any time in the future
- No need to send in your system, we just send you the EEG channel module to install yourself in less than five minutes with nothing but a screwdriver.

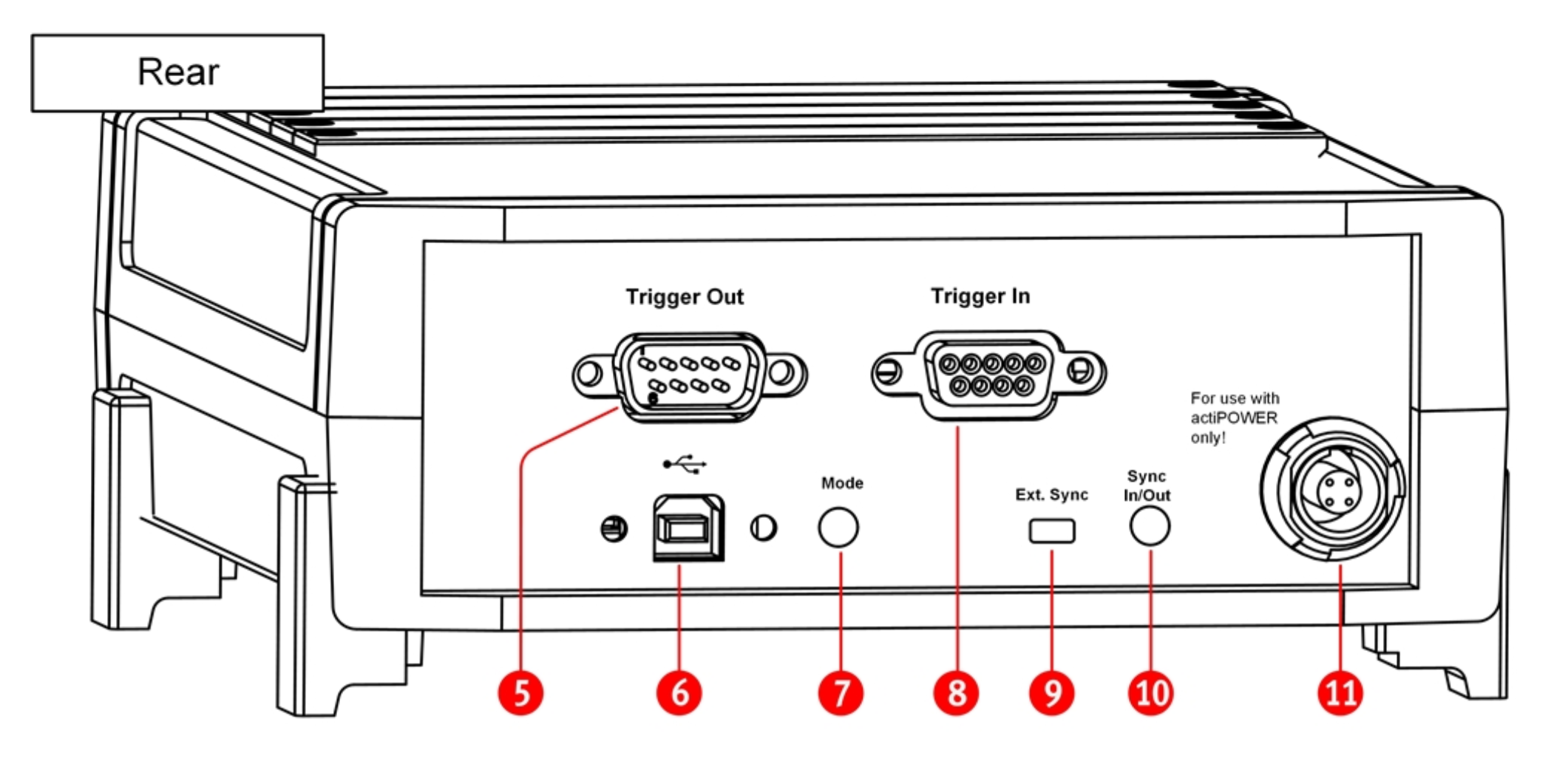

Trigger Inputs and Outputs
- 8-bit TTL input port for receiving event trigger codes
- Separate 8-bit TTL output port can either replicate the TriggerIn port or send a regularly paced “clock pulse” signal onward to other systems (eg fNIRS, TMS, etc)
Integrated with Lab Streaming Layer (LSL)
- Data can be streamed out via Lab Streaming Layer (LSL) using actiCHamp LSL Connector or BrainVision Recorder 2.
Powered by lithium-ion technology
- Ensure longer recording times with higher battery capacity
- Long battery life with low self-discharge rate
